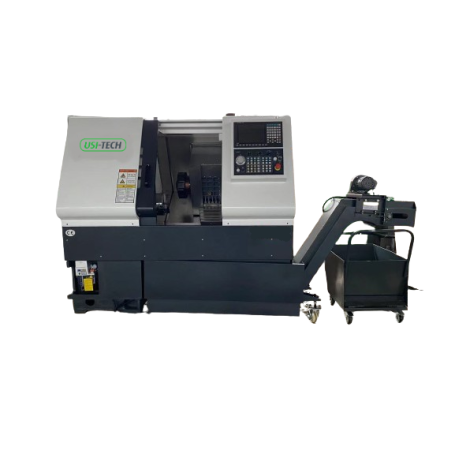

CNC LATHE WITH INCLINED BED T26PRO SPINDLE BORE 62 BETWEEN CENTER 450 4AXIS
€58,900.00
Tax excluded
Data sheet
UTM-T260PRO4AXS828D
Data sheet
- Weight
- 3800kg
- Dimensions
- 2000x1700x1880mm
- Max. travel
- 115mm
- Tailstock taper bore
- CM4
- Ø tailstock
- Ø63mm
- Max. Ø internal tool
- Ø25mm
- Max. section external toos
- 20X20mm
- Live tools max. speed
- 2000rpm
- Live tool servo motor power
- 2.4kw
- Tourret
- 12 tools
- Rapid feed for Z axis
- 20m/min
- Rapid feed for Y axis
- 5m/min
- Rapide feed for X axis
- 15m/min
- Axis Z travel
- 450mm
- Axis Y travel
- +/-30mm
- Axis X travel
- 180mm
- Range of spindle speed
- 3000rpm
- Spindle bore
- Ø62mm
- Spindle nose
- Ø170mm
- Max processing Ø
- Ø260mm
- Bed structure
- 30°
- Motor power
- 11kw
- Tension
- 400v
- Controller
- Siemens 828D
Description
Standard equipment :
-Siemens 828D control
-Siemens servo motor for X, Y and Z axes
-Siemens spindle motor
-12-tool turret with Y axis
-1* 90° rotating tool
-1*0° rotating tool
-2* interior tool holders
-2* exterior tool holders
-1* front tool holder
OPTION:
-Renishow tool setter
-LNS bar deeder Ø65mm, length 1500mm
