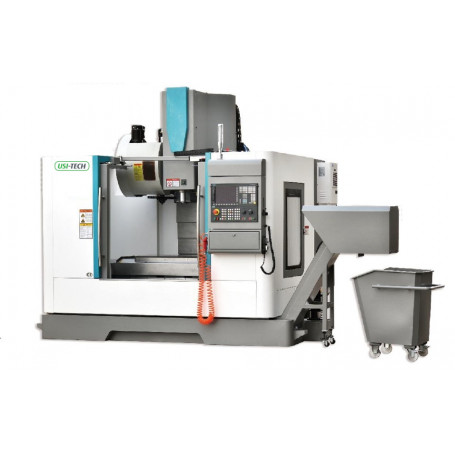

Vertical CNC center with refrigerated spindle 12000rmp
€0.00
Tax excluded
Data sheet
UTM-V1000LHS/808DA
Data sheet
- Type de commande numérique
- Siemens 808D advance
- Course de la table axe X/Y
- 1000 - 520 mm
- Course de la tête Z
- 520mm
- Dimension table
- 1130x510mm
- Poids max. sur la table
- 800kg
- Cône broche vertical
- BT 40
- Vitesse de la broche verticale
- 12000tr/min
- Puissance broche verticale
- 15kw
- Capacité du magasin d'outils
- 24 pcs
- Tension
- 400 V
- Dimensions de la machine
- 4300x2300x2700mm
- Poids de la machine
- 5580kg
Description
Standard equipment:
- Siemens 808AD control
- Siemens servo motor on X / Y / Z axis and spindle
- 12000rpm spindle
- High speed spindle cooling
- Central watering from spindle with filtration system
- BT40 spindle taper
- Random tool magazine with capacity for 24 tools
- Chip conveyor with chain
- Container on wheels for chip recovery
- Machine CE standard
Price upon inquiery
- Siemens 808AD control
- Siemens servo motor on X / Y / Z axis and spindle
- 12000rpm spindle
- High speed spindle cooling
- Central watering from spindle with filtration system
- BT40 spindle taper
- Random tool magazine with capacity for 24 tools
- Chip conveyor with chain
- Container on wheels for chip recovery
- Machine CE standard
Price upon inquiery
