Perceuse fraiseuse universelle avec lecture digitale 3 axes, 2 axes motorisés, socle en fonte
€5,390.00
Tax excluded
€6,190.00
- €800.00
Data sheet
UTM-DM45LXZMD/BAD/AR
Data sheet
- Table dimension
- 1000x240mm
- Table travel XY
- 700x180mm
- T-slot width and distance
- 14mm/3x80mm
- table travel
- X automatique/ Y manuel
- Max. load pf table
- 120kg
- Spindle taper/tirant
- CM4/M16
- Spindle travel
- 120mm
- Spindle feed
- automatique/manuel
- Aotumatic spindle feed
- 3 pos 0.1-0.18-0.26 mm/tr
- Spindle moteur power
- 1.5kw
- Spindle speed
- 75-1600 tr/min
- Drilling capacité steel
- 32mm
- Capacity with end milling
- 25mm
- capacity of surfacing
- 65mm
- Head titling
- +/- 45°
- Head travel Z
- 350mm
- Machine dimension
- 1500x950x2000mm
- Machine footprint
- 1900x950x2200mm
- Machine weight
- 520kg
- Voltage
- 3x400V
Description

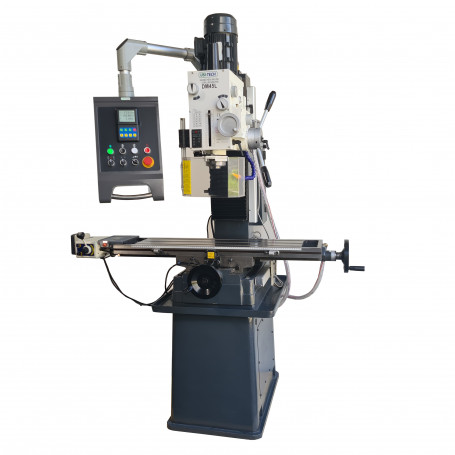

Universal drilling machine with 3-axis digital readout, drilling feed with digital depth readout, 2 motorized X and Z axes (head and table), robust cast iron base and tool cooling system.
Here is the ideal machine for maintenance and mechanical workshops as well as training centers.
Its large table of 1000x240mm with X displacement of 760mm and Y of 195mm will offer you good machining capacity. The automatic advance of spindle and digital reading on the depth will facilitate drilling operations.
Thanks to its robust milling head tilting at +/- 45° you can perform a large number of milling operations without forgetting the tapping function with inversion of the rotation of the spindle motor on the adjustable depth stop.
A pendulum control panel will make it easier for you to control the machine with separate emergency start / stop button, left-right rotation, tapping function, start / stop of the cooling system, not to mention its digital display on the axes.
The whole machine rests on a cast iron base for more rigidity.
Secure:
CE machine with chuck protection screen and microswitch, emergency stop button
Standard equipments:
Crown chuck 1-13
CM4 chuck holder shaft with tenon
CM4 and CM3 reduction
User Manual
