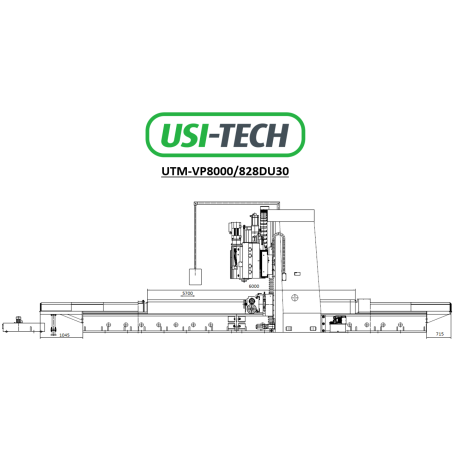

Portal milling cutter with U30 head PRICE ON REQUEST

Data sheet

CNC 3 axis controller X/Y/Z(U30)

Siemens828D

Worktable size

8000x1600mm

T-slot Number/width

7-28mm

Worktable travel axis X

10000mm

Worktable feeding speed

10-2000mm/min

Beam lifting speed (hydraulic locking and digital readout)

440mm/min

Beam lifting motor power

11KW

Tilting vertical head U30

+/-30°

Y axis

1500mm

Z travel spindle U30

500mm

Spindle taper

BT50

Clamping system spindle taper

Pneumatic

Spindle motor power

30kw

Max cutter Ø

300mm

Speed range

35/66/77/103/144/158/192/294/346/460/644/855 tr/min

Head lock

Hydraulic

Rotation angle head

+/- 30° manual

Machine weight

79000kg

Machine size

23170x4600x3600mm
