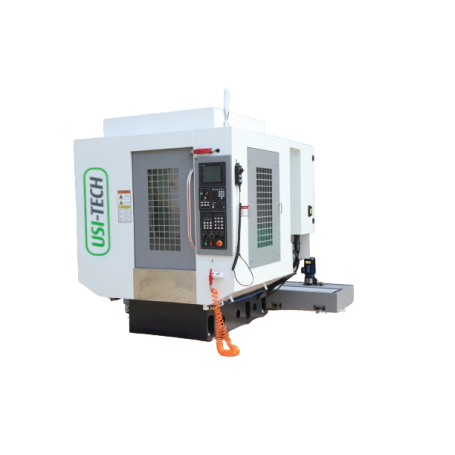

High production vertical CNC center RDT600

Data sheet

Controller

Mitsubishi M80A

X axis

600mm

Y axis

400mm

Z axis

300mm

Spindle center to comumn

464mm

Spindle end to table

150-450mm

Table size

700x420mm

T-slot(widthxnumberxspace)

14x3x125mm

Max table loading

300kg

Spindle taper

BT30/Ø100mm

Spindle power

5.5kw

Spindle speed

20000rpm

X/Y/Z axis rapid speed

48m/min

Tool number

21

Max tool size

60mm

Max tool length

200mm

Max tool weight

2kg

Time for tool changement

1.1 second

Positioning

-0.010mm

Repeatability(X/Y/Z)

-0.006MM

Dimensions

1750x2300x2250mm

Machine weight

3000kg
