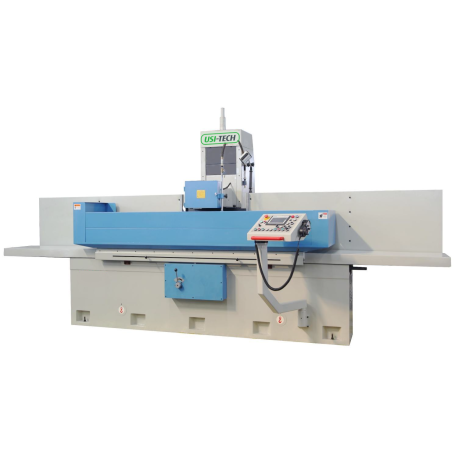

Industiral high precision full automatic grinding machine
Data sheet
Data sheet
- Course de la table axe X/Y
- 1000/500mm
- Dimension table
- 500x1000mm
- Poids max. sur la table
- 700kg
- Dimension de la meule
- 350x40x127mm
- Vitesse de rotation de la meule
- 1450 tr/min.
- Puissance moteur broche
- 7.5kw
- Tension
- 400 V
- Dimensions de la machine
- 4500x2650x2700mm
- Poids de la machine
- 5500kg
- Distance de la broche à la surface table
- 600mm
- Avance X hydraulique
- 5m/min-25m/min
- Avance axe Y
- 50mm/min-500mm/min
- Profondeur d'avance axe Y
- 0.005mm-0.05mm
- Avance axe Z
- 50mm/min-1500mm/min
- Avance automatique axe Z
- 0mm/min-30mm/min
Description
The UTM-RPRO1000APLC grinding machine grinds the treated surfaces to the precise tolerances required. The machine frame is a cast iron cross bed, this design allows a long guide of the table without overhang for optimal work of the part over the entire working area. This process also makes it possible to grind several parts in series.
Thanks to the use of its electronic crank and its simplified touch control, this machine offers the possibility of switching from automatic operation to extended manual operation for the production of samples and the repair of all parts.
-Cast cross frame design for maximum stability
-Magnetic clamping plate with integrated demagnetization function
-Siemens Smart Line PLC control with grinding cycles
-Digital controlled Y/Z axis with servo motor drive
-Touch screen
-Electronic handwheel for Y/Z axis
Standard equipment:
-2-axis digital readout
-Electronic handwheel Y and Z axes
-Grinding wheel holder Work area cover
-Cooling system
-Grinding wheel dresser (without dressing diamond)
-Balancing device
-Balancing spindle
-LED work light
-Magnetic table
-Adjustment screw
-Service tools
-Siemens PLC control with touch screen
-Grinding wheel
-Automatic central lubrication
-CE machine
The UTM-RPRO1000APLC grinding machine grinds the processed surfaces to the precise tolerances required. The machine frame is a cast iron cross bed, this design allows a long guide of the table without overhang for optimal work of the part over the entire working area. This process also allows to rectify several parts in series.
Thanks to the use of its electronic crank and its simplified touch control this machine offers the possibility of switching from automatic operation to extended manual operation for the production of samples and the repair of all parts.
Cast cross frame design for maximum stability
Magnetic clamping plate with integrated demagnetization function
Siemens Smart Line PLC control with grinding cycles
Numerically controlled Y/Z axis with servo motor drive
Touch screen
Electronic handwheel for Y/Z axis
Standard equipment:
-2-axis digital readout
-Electronic handwheel Y and Z axes
-Grinding wheel holder Work area cover
-Cooling system
-Grinding wheel dresser (without dressing diamond)
-Balancing device
-Balancing spindle
-LED work light
-Magnetic table
-Adjustment screw
-Service tools
-Siemens PLC control with touch screen
-Grinding wheel
-Automatic central lubrication
-CE machine
