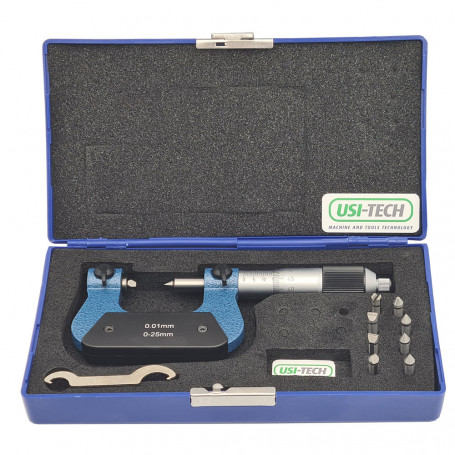

Outside micrometer for thread with measuring inserts for metric and UN thread
€82.50
Tax excluded
Data sheet
UTE-MEF0-25ME-UN
Data sheet
- Range
- 0 - 25 mm
- Accurancy
- +/-0.004 mm
- Resolution
- 0.01 mm
- Made in
- Acier traité
- Material of contact
- Treated and ground steel
- Stallion
- No
- Contact
- 4 paires à 60° ( 0.4 à 5 mm ) et ( 64 à 5 TPI 60°)
Description
-External micrometer for treated steel thread.
-Delivered with 4 pairs of hardened and rectified steel measuring keys.
- Used to control most of the metric and UN threads at 60 ° included in the measurement range of 0-25 mm.
- All delivered in a box
* 5.5 - 7 TPI 4.5 à 3.5
* 24 - 14 TPI 1 à 1.75
* 44 - 28 TPI 0.6 à 0.9
* 8 à 5 TPI 3.5 à 5
* 13 à 9 tpi 2 à 3
-Delivered with 4 pairs of hardened and rectified steel measuring keys.
- Used to control most of the metric and UN threads at 60 ° included in the measurement range of 0-25 mm.
- All delivered in a box
* 5.5 - 7 TPI 4.5 à 3.5
* 24 - 14 TPI 1 à 1.75
* 44 - 28 TPI 0.6 à 0.9
* 8 à 5 TPI 3.5 à 5
* 13 à 9 tpi 2 à 3
