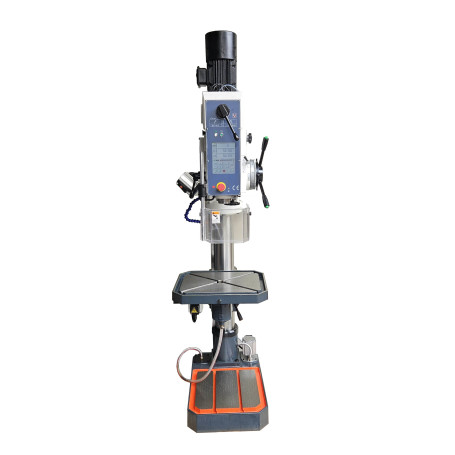

PRO drilling machine with controle screen touche

Data sheet

Max Ø of drilling and tapping

40mm/M42

Spindle travel

190mm

Distance between spindle center to column surface

340mm

Distance between spindle nose to table

595mm(manual)/580(auto)

Distance between spindle nose to machine base

1195mm

Table travel (manuel/electrical)

540/430mm

Spindle taper

MT4

Spindle speed range

0.1/0.2/0.3/0.4

Spindle speed

60-2600 rpm

Number of speed

4

Ø column

140mm

T slot width/number

T14-4

Table dimension

540X440mm

Machine base dimension

415x400mm

Coolant pompe power

130w

Motor power

2kw

Poids de la machine

565kg

Machine dimensions

885x640x2230mm
